HRMT series enclosed dual-drive high-speed fiber laser cutti

Release time：2021-03-26 09:04 Pageviews：

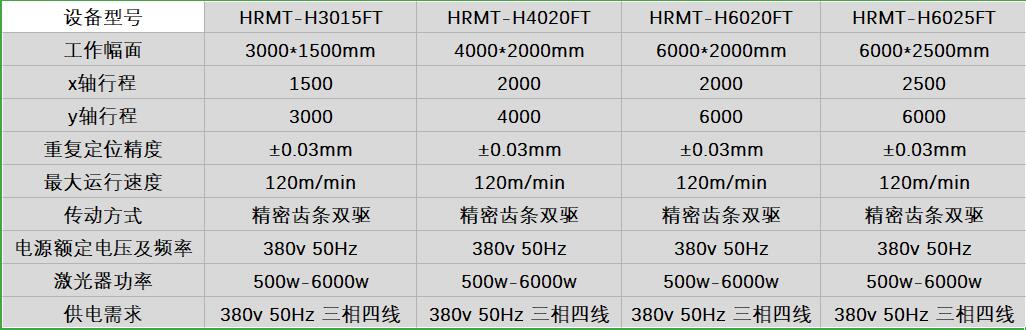

The main technical parameters：

Main parts supporting manufacturers：

　　Taiwan TBI Taiwan T8I

　　Taiwan HIWIN

　　Japan NSK of Japan

　　SECO of Sweden

　　Taiwan Zhongda Oentsu Taiwan Zhongda Oentsu / Yaskawa of Japan

　　Taiwan Zhongda Dentsu Taiwan Zhongda Dentsu/Yaskawa of Japan

　　Schneider of France

　　Germany IGUS IGUS of Germany

　　Taiwan AIRTAC

The purpose of the machine:

HRMT series enclosed dual-drive high-speed fiber laser cutting machine with exchange table is mainly used for cutting metal materials such as carbon steel, stainless steel, titanium alloy, brewing and washing plate, and aluminum-zinc plate. Used in various manufacturing and processing industries such as sheet metal processing, aerospace, electrical appliances, automobiles, precision accessories, metallurgical equipment, elevators, household appliances, tool processing, advertising, and external processing.

Product shape and structure：

HRMT series enclosed dual-drive high-speed fiber laser cutting machine consists of four main components: fiber laser, motor, cutting head, and servo motor.

Working slide structure

The slider of HRMT series enclosed dual-drive high-speed fiber laser cutting machine is a mold component that can slide perpendicular to the mold opening direction during the mold opening action. When the product structure prevents the mold from being demolded normally, the slider must be used. The material itself has the right hardness, wear resistance, and can withstand movement friction.

Hydraulic system：

The hydraulic system of the HRMT series enclosed dual-drive high-speed fiber laser cutting machine can change the pressure and increase the force. It is composed of five components: power, execution, control, auxiliary, and hydraulic oil. It is mainly used to transmit power and movement. It is small in size. The rigidity is big, the response is fast, the driving force is big.

Electrical control system：

The HRMT series enclosed dual-drive high-speed fiber laser cutting machine can operate the equipment through the control loop control system. This loop is the electrical control system, which has the functions of start, stop, signal, measurement, and protection loops.

Slider synchronization control：

The function of the synchronizer transmission slider of the HRMT series enclosed dual-drive high-speed fiber laser cutting machine is to push the synchronizer ring (copper ring) into the gear coupling teeth at the beginning of gear shifting, so that the taper hole of the synchronizer ring and the taper shaft of the coupling teeth Surface contact, friction, so that the copper ring rotates a specific angle, continue to move in gear, the slider will be pressed in (synchronizer gear hub) to complete its task.

Backgauge：

The back gauge of HRMT series enclosed dual-drive high-speed fiber laser cutting machine can not only move smoothly on the linear guide, but also can be adjusted up and down, which is convenient, efficient and easy to control.

E21 system：

The E21 system of the HRMT series enclosed dual-drive high-speed fiber laser cutting machine has a high-definition LCD screen and displays programming parameters. The X and Y axes can be manually adjusted as required. The operation is simple. It has a one-key parameter backup and recovery function, and supports multiple tasks. Step-by-step programming, after strict EMC, high and low temperature, vibration and other tests, it is stable and has a long service life.
