3015 series single drive fiber laser cutting machine

Author：Jiangsu Hairui CNC Machine Tool Release date：2021-03-26 09:04 Views：

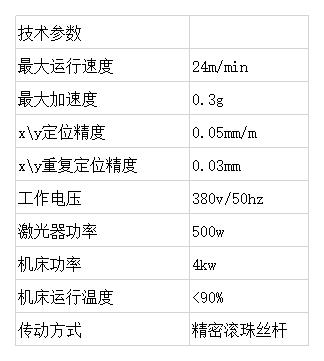

■ The main technical parameters

■ Main parts supporting manufacturers

3015 series single-drive fiber laser cutting machine adopts humanized design, internationally renowned electrical components Schneider, transmission system adopts Taiwan silver guide screw, the movement track is flat and fine, the speed and accuracy are greatly improved, and there are more practical users Experience.

■ The purpose of the machine

The 3015 series single-drive fiber laser cutting machine is mainly used for cutting metal materials such as carbon steel, stainless steel, titanium alloy, brewing and washing plate, and aluminum-zinc plate. Used in various manufacturing and processing industries such as sheet metal processing, aerospace, electrical appliances, automobiles, precision accessories, metallurgical equipment, elevators, household appliances, tool processing, advertising, and external processing.

■ Product shape and structure

The 3015 series single-drive fiber laser cutting machine consists of four main components: fiber laser, motor, cutting head, and servo motor.

■ Working slide structure

The 3015 series single-drive fiber laser cutting machine slider is a mold component, which can slide perpendicular to the mold opening direction during the mold opening action. When the product structure prevents the mold from being demolded normally, the slider must be used. The material itself has the right hardness, wear resistance, and can withstand movement friction.

■ Hydraulic system

The hydraulic system of 3015 series single-drive fiber laser cutting machine can change the pressure and increase the force. It consists of five components: power, execution, control, auxiliary, and hydraulic oil. It is mainly used to transmit power and movement. It has a small size, large rigidity, and The response is fast and the driving force is great.

■ Electrical control system

The electrical control system of the 3015 series single-drive fiber laser cutting machine can operate the equipment through the control loop control system. This loop is the electrical control system, which has the functions of start, stop, signal, measurement, and protection loops.

■ Slider synchronization control

The function of the synchronizer transmission slider of the 3015 series single-drive fiber laser cutting machine is to push the synchronizer ring (copper ring) into the gear coupling tooth at the beginning of the gear shift, so that the taper hole of the synchronizer ring contacts the taper shaft of the coupling tooth. Friction, so that the copper ring rotates at a specific angle and continues to move in gear, the slider will be pressed in (synchronizer hub) to complete its task.

■ Backgauge

The rear gauge of 3015 series single-drive fiber laser cutting machine can not only move smoothly on the linear guide, but also can be adjusted up and down, which is convenient, efficient and easy to control.

■ E21 system

3015 series single-drive fiber laser cutting machine E21 system with high-definition LCD screen, display programming parameters, X, Y axis can be manually adjusted as needed, easy to operate, with one-key parameter backup and recovery function, support multi-step programming, After strict EMC, high and low temperature, vibration and other tests, it is stable and has a long service life.
