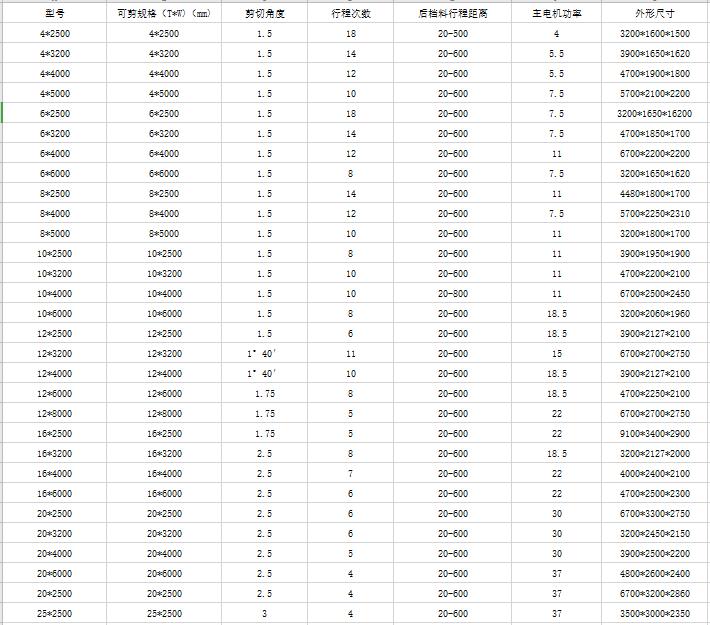

The main technical parameters：
Main parts supporting manufacturers：
The purpose of the machine:
QC12K series hydraulic (numerical control) pendulum shears adopt all-steel welded structure, which can eliminate stress from vibration. It has good rigidity and stability. It is mainly used in instrumentation, aerospace, automobile, shipbuilding and other industries, and is suitable for various high strength Stretching work of alloy plates.
Product shape and structure：
QC12K series hydraulic (CNC) pendulum shears are mainly composed of frame, core part, motor, working table, guide ruler and guard, etc. The frame part is steel welded structural parts, motor, core part, guide ruler, etc. , Workbench and guards are all installed on the rack. The movement is composed of an upper beam and a lower beam. The upper beam is connected by two wall panels by rollers. The roller shafts are equipped with middle rollers, outer rollers and gears.
![]()
Working slide structure
The slider of the QC12K series hydraulic (numerical control) pendulum shear is a mold component that can slide perpendicular to the mold opening direction during the mold opening action. When the product structure prevents the mold from being demolded normally, the slider must be used. The material itself has the right hardness, wear resistance, and can withstand movement friction.
![]()
Hydraulic system：
The QC12K series hydraulic (numerical control) pendulum shears adopt advanced hydraulic integrated valve blocks, which are compact in structure, reduce pipeline connections, and improve the reliability and ease of maintenance of the system.
![]()
Electrical control system：
QC12K series hydraulic (numerical control) pendulum shears can operate the use of equipment through the control loop control system. This loop is the electrical control system, which has the functions of start, stop, signal, measurement, and protection loops.
![]()
|
Slider synchronization control：
The function of the synchronizer transmission slider of the QC12K series hydraulic (numerical control) pendulum shears is to push the synchronization ring (copper ring) into the gear coupling teeth at the beginning of gear shifting, so that the taper hole of the synchronization ring and the taper shaft of the coupling teeth Surface contact, friction, so that the copper ring rotates a specific angle, continue to move in gear, the slider will be pressed in (synchronizer gear hub) to complete its task.
![]()
|
|
|
Backgauge：
QC12K series hydraulic (numerical control) pendulum shears have backgauge size and cutting times, and a digital display device.
![]()
|
|
E21 system：
The E21 system of the QC12K series hydraulic (numerical control) pendulum shears has a high-definition LCD screen and displays programming parameters. The X and Y axes can be manually adjusted as required. The operation is simple. It has a one-key parameter backup and recovery function, and supports multiple tasks. Step-by-step programming, after strict EMC, high and low temperature, vibration and other tests, it is stable and has a long service life.
![]()
