Fixed Angle Hydraulic Shearing Machine

Release time：2021-03-26 09:07 Pageviews：

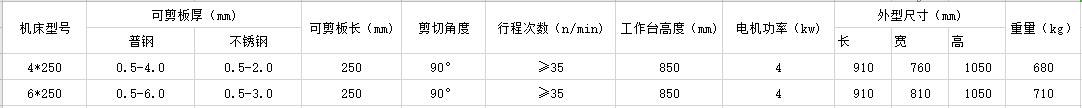

The main technical parameters：

Main parts supporting manufacturers：

The purpose of the machine:

The fixed angle hydraulic angle shearing machine is a kind of equipment for shearing metal plates, which can be adjusted arbitrarily within the angle range of 90° to achieve the ideal state. It is mainly used for cutting metal plates, and is used in automobiles, boats, electrical appliances, cooking utensils, stainless steel products, etc.

Product shape and structure：

Fixed angle hydraulic angle shears Angle shears include angle shearing, transportation and control systems. It has a movable head that can move up and down, and a sleeve connected to the movable head. The sleeve is set in the sleeve and connected to the movable head to control the up and down of the movable head. Moving connecting rod.

Working slide structure

The fixed-angle hydraulic angle shearing machine slider is a mold component that can slide perpendicular to the mold opening direction during the mold opening action. When the product structure prevents the mold from being demolded normally, the slider must be used. The material itself has the right hardness, wear resistance, and can withstand movement friction.

Hydraulic system：

The fixed-angle hydraulic angle shearing machine adopts the hydraulic downward transmission type, which changes the pressure to increase the force. It is composed of power, execution, control, auxiliary, and hydraulic oil. It is mainly used to transmit power and movement. It is small in size and large in rigidity. , Fast response and great driving force.

Electrical control system：

The fixed-angle hydraulic angle shearing machine can control the use of equipment through the control circuit control system. This circuit is the electrical control system, which has the functions of start, stop, signal, measurement, and protection circuits.

Slider synchronization control：

The function of the synchronizer transmission slider of the fixed-angle hydraulic shear angle machine is to push the synchronizer ring (copper ring) into the gear coupling tooth when the gear shift starts, so that the taper hole of the synchronizer ring contacts and rubs against the taper shaft of the coupling tooth. As a result, the copper ring rotates at a specific angle and continues to move in gear, and the slider will be pressed in (synchronizer hub) to complete its task.

Backgauge：

The back gauge of the fixed-angle hydraulic angle shearing machine can not only move smoothly on the linear guide rail, but also can be adjusted up and down, which is convenient, efficient and easy to control.

E21 system：

The E21 system of the fixed angle hydraulic shearing machine has a high-definition LCD screen, which displays the programming parameters. The X and Y axes can be manually adjusted as required. The operation is simple. It has the function of one-key backup and recovery of parameters, supports multi-step programming, and passes EMC , High and low temperature, vibration and other strict tests, stable and long service life.
