JH21 series open fixed table high performance press
Release time：2021-03-26 09:10 Pageviews：

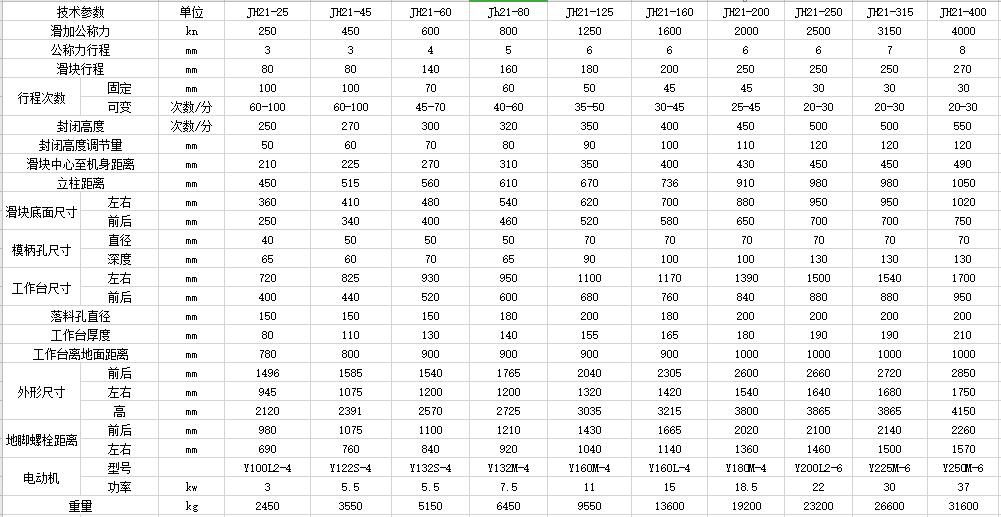

The main technical parameters：
Main parts supporting manufacturers：
The purpose of the machine:
The JH21 series open fixed table high-performance press is a general-purpose equipment, which can carry out the stamping process under the action of mechanical pressure, and is widely used in the automobile, electrical appliances, medical machinery, aerospace and daily necessities industries.
Product shape and structure：
The JH21 series open fixed table high-performance press system consists of the main drive, motor drive, air pipeline, slider, body, dynamic balance, hydraulic system, and lubrication system.
Working slide structure
The JH21 series open fixed table high-performance press slider is a mold component that can slide perpendicular to the mold opening direction during the mold opening action. When the product structure prevents the mold from being demolded normally, the slider must be used. The material itself has the right hardness, wear resistance, and can withstand movement friction.
Hydraulic system：
The hydraulic system of the JH21 series open fixed table high-performance press can change the pressure and increase the force. It is composed of five components: power, execution, control, auxiliary, and hydraulic oil. It is mainly used to transmit power and movement. It has small size and rigidity. Big, fast response and great driving force.
Electrical control system：
The electrical system of the JH21 series open fixed table high-performance press can control the use of the equipment through the control loop control system. This loop is the electrical control system, which has the functions of start, stop, signal, measurement, and protection loops.
|
Slider synchronization control： The function of the synchronizer transmission slider of the JH21 series open fixed table high-performance press is to push the synchronizer ring (copper ring) into the gear coupling tooth at the beginning of gear shifting, so that the taper hole of the synchronizer ring and the taper shaft surface of the coupling tooth Contact, friction, so that the copper ring rotates a specific angle, continue to move in gear, the slider will be pressed in (synchronizer hub) to complete its task.
|
|
Backgauge： The back gauge of JH21 series open fixed table high-performance press can not only move smoothly on the linear guide, but also can be adjusted up and down, which is convenient, efficient and easy to control.
|
E21 system：
JH21 series open fixed table high-performance press E21 system with high-definition LCD screen, display programming parameters, X, Y axis can be manually adjusted as needed, easy to operate, with one-key parameter backup and recovery function, support multiple steps The programming has passed strict EMC, high and low temperature, vibration and other rigorous tests, stable and long service life.
