HRL series CNC gantry type slotting machine
Release time：2021-03-26 09:02 Pageviews：

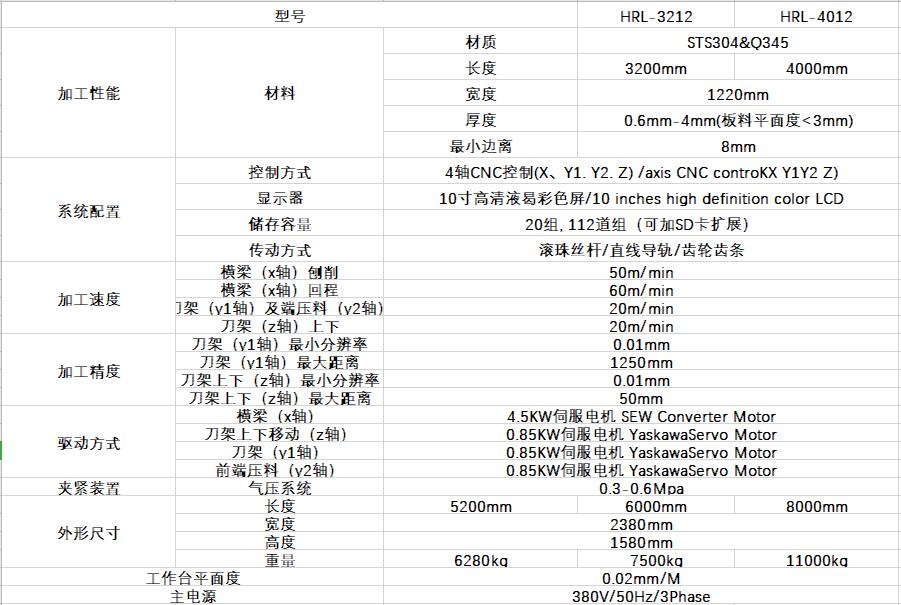

The main technical parameters：
Main parts supporting manufacturers：
The purpose of the machine:
HRL series CNC gantry planer is suitable for industries that require high-precision processing of plates, such as elevators, decorative materials, stainless steel processing, household appliances, and prop display. It adopts steel plate welding structure, annealing aging treatment, good stability, high working precision, high processing efficiency, and labor intensity of workers is greatly reduced.
Product shape and structure：
The main frame structure of the HRL series CNC gantry planer has a beam, a bed, a driving part, a tool holder part and a presser foot. The beam has one and is fixedly installed on the bed, and the driving part and presser foot are both installed on the beam. The tool holder part is installed on the drive part.
Working slide structure
The slider of the HRL series CNC gantry planer is a mold component that can slide perpendicular to the mold opening direction during the mold opening action. When the product structure prevents the mold from being demolded normally, the slider must be used. The material itself has the right hardness, wear resistance, and can withstand movement friction.
Hydraulic system：
The hydraulic system of the HRL series CNC gantry planer can change the pressure and increase the force. It consists of five components: power, execution, control, auxiliary, and hydraulic oil. It is mainly used to transmit power and movement. It has a small size, large rigidity, and The response is fast and the driving force is great.
Electrical control system：
The HRL series CNC gantry planing machine can operate the use of the equipment through the control loop control system. This loop is the electrical control system, which has the functions of start, stop, signal, measurement, and protection loops.
|
Slider synchronization control： The function of the synchronizer transmission slider of the HRL series CNC gantry planer is to push the synchronizer ring (copper ring) into the gear coupling tooth at the beginning of the gear shift, so that the taper hole of the synchronizer ring contacts the taper shaft of the coupling tooth. Friction, so that the copper ring rotates at a specific angle and continues to move in gear, the slider will be pressed in (synchronizer hub) to complete its task.
|
|
Backgauge： The back gauge of HRL series CNC gantry planer can not only move smoothly on the linear guide, but also can be adjusted up and down, which is convenient, efficient and easy to control.
|
E21 system：
The E21 system of the HRL series CNC gantry planer has a high-definition LCD screen that displays programming parameters. The X and Y axes can be manually adjusted as required. The operation is simple. It has a one-key parameter backup and recovery function, and supports multi-step programming. Strictly tested by EMC, high and low temperature, vibration, etc., it is stable and has a long service life.
