HRY series CNC hydraulic groove planer

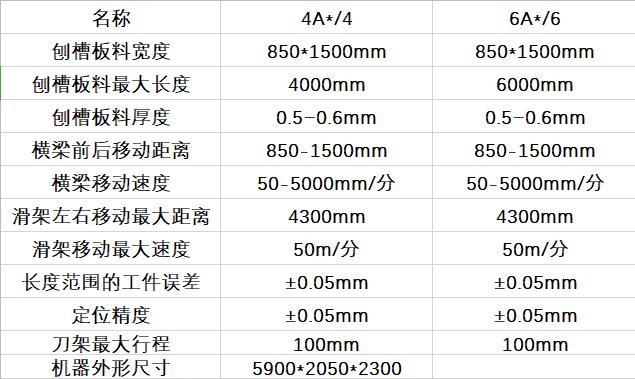

■ The main technical parameters

■ Main parts supporting manufacturers

■ The purpose of the machine

The HRY series CNC hydraulic slotting machine is suitable for industries that require high-precision processing of plates, such as elevators, decorative materials, stainless steel processing, household appliances, and prop display. Steel plate welded structure, annealing aging treatment, good stability, high working precision, high processing efficiency, and greatly reduced labor intensity of workers.

■ Product shape and structure The main frame structure of the HRY series CNC hydraulic planer has a beam, a bed, a drive part, a tool holder part and a presser foot. The beam has one and is fixedly installed on the bed, and the drive part and presser foot are both installed on the beam. The tool holder part is installed on the drive part.

■ Working slide structure The slider of the HRY series CNC hydraulic slotting machine is a mold component that can slide perpendicular to the mold opening direction during the mold opening action. When the product structure prevents the mold from being demolded normally, the slider must be used. The material itself has the right hardness, wear resistance, and can withstand movement friction.

■ Hydraulic system HRY series CNC hydraulic groove planer adopts hydraulic down transmission type, changing the pressure to increase the force. It is composed of power, execution, control, auxiliary, and hydraulic oil. It is mainly used to transmit power and movement. It is small in size. The rigidity is big, the response is fast, the driving force is big.

■ Electrical control system The HRY series CNC hydraulic planing machine can operate the equipment through the control loop control system. This loop is the electrical control system, which has the functions of start, stop, signal, measurement, and protection loop.

■ Slider synchronization control The function of the synchronizer transmission slider of the HRY series CNC hydraulic slotting machine is to push the synchronizer ring (copper ring) into the gear coupling tooth at the beginning of the gear shift, so that the taper hole of the synchronizer ring contacts the taper shaft of the coupling tooth. Friction, so that the copper ring rotates at a specific angle and continues to move in gear, the slider will be pressed in (synchronizer hub) to complete its task.

■ Backgauge The back gauge of HRY series CNC hydraulic planer can not only move smoothly on the linear guide rail, but also can be adjusted up and down, which is convenient, efficient and easy to control.

■ E21 system The E21 system of the HRY series CNC hydraulic planer has a high-definition LCD screen that displays programming parameters. The X and Y axes can be manually adjusted as required. The operation is simple. It has a one-key parameter backup and recovery function, and supports multi-step programming. After strict EMC, high and low temperature, vibration and other tests, it is stable and has a long service life.
